Integrated Gel Imaging System
Gel Imaging System
The BIO-OI all-in-one gel imaging system is a highly integrated, fully automated gel imaging system featuring a built-in touch control interface. The interface is simple and practical, with a guided main screen displaying capture buttons and time controls. It is easy to operate with no tedious manual adjustment, making it the instrument of choice for laboratories.
■ Product Features
Touch Control System
High-definition capacitive touch control system with a physical one-touch imaging button; sample loading to imaging can be completed with a single press.
Autofocus
Software autofocus; simply place the sample and capture directly, no manual focusing required.
High-Definition Imaging Module
Equipped with a high-definition camera lens module, with lens resolution up to 20 megapixels.
■ Product Applications

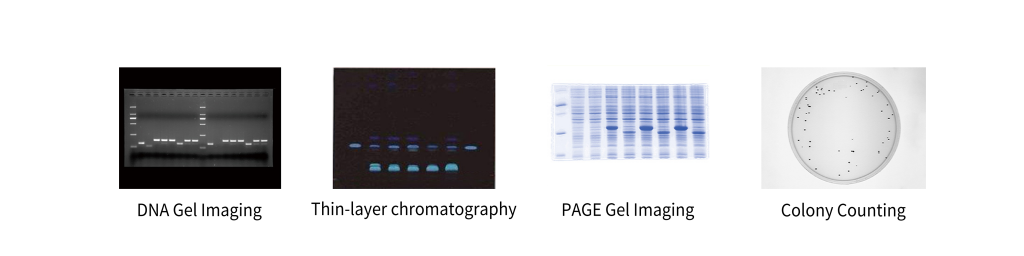

Suitable for nucleic acid detection using various fluorescent dyes such as EB, SYBR™ Gold, SYBR™ Green, SYBR™ Safe, Gel Red, Gel Green™, Texas Red, Fluorescein-labeled DNA/RNA, etc.
■ Product Parameters
| Model | OI-X3Touch | OI-X5Touch |
| Touch Control System | High-definition capacitive touch system | High-definition capacitive touch system |
| Effective Pixels | 6.3 MP | 12 MP |
| Pixel Density | 16 bit (0–65535 colors) | 16 bit (0–65535 colors) |
| Dynamic Range | ≥4.8 orders of magnitude | ≥4.8 orders of magnitude |
| Motorized Lens | F1.2 autofocus lens | F1.2 autofocus lens |
| White Light Transillumination | LED white light self-luminous sample plate | LED white light self-luminous sample plate |
| UV Wavelength | 302nm, optional blue transillumination | 302nm, optional blue transillumination |
| UV Area | 21×21 cm, other options available | 21×21 cm, other options available |
| White Light Reflection | LED dual-sided reflection (cold light) | LED dual-sided reflection (cold light) |
| Optical Filters | Standard 590nm, other options available | Standard 590nm, other options available |
